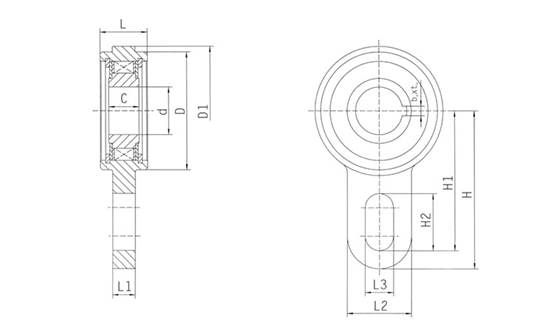

CK-N系列單向離合器結構簡圖

CK-N系列單向離合器技術參數(shù)表

產(chǎn)品特性

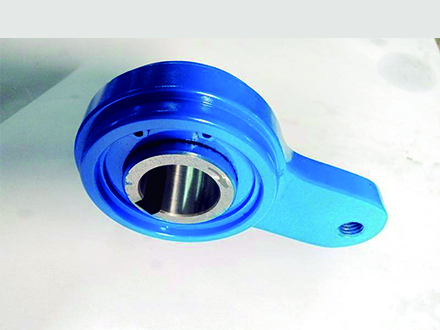

    CK-N系列為不含油封及無軸承支撐的滾柱式單向離合器，適用于低運轉速度。

    CK-N系列主要應用于包裝機械、印刷機械等設備上的防止逆轉，定位給料；可最小的空間內提供大的扭矩。

    Type CK-N is roller type one-way clutch integrate without supporting bearing and oil seal, and is suitable to application at low running speed.

    Unit primarily used as a backstop or indexing clutch in packing and printing. This type provides a high torque capacity with a minimum space requirement.

CK-N系列單向離合器安裝示意圖

安裝要求

安裝時，螺栓與擺桿槽孔的間隙為槽孔的1%寬度，螺桿與離合器在安裝后絕不可能有內應力存在（安裝時螺栓不可將扭力臂軸向鎖住，徑向也要留有間隙，使得沒有彎曲應力施加于軸承及擺桿上）。

A bolt,secured to a fixed part of the machine and passing through the slot in the torque arm, provides the rotational stop. Radial clearance on this bolt should be equal to 1% of the slot width. The torque arm and the bearings must not be prestressed.
